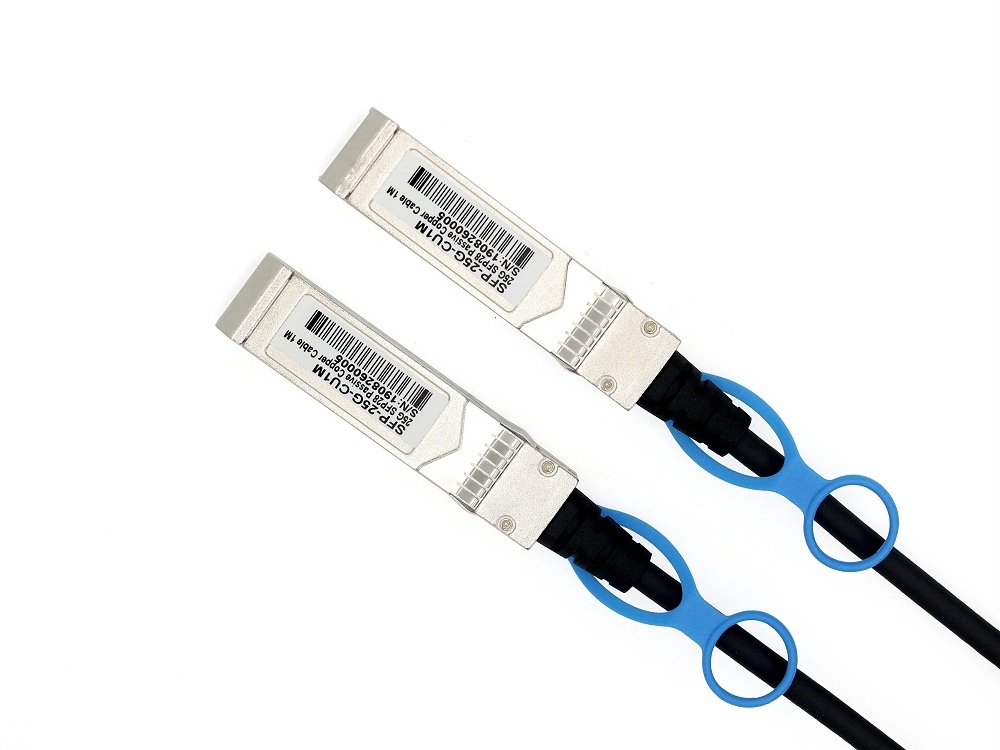

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter

Name: 25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter
Brand: YINGDA
Price: 7 USD

China 25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter factory

Brand Name : YINGDA

Model Number : SFP H25Gb Cu5m

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : US$7-20

Payment Terms : D/A,D/P,T/T

Supply Ability : 1000000per month

Delivery Time : 3-7 working days

Connector : SFP28 to SFP28

Operating Temperature : 0°C to 70°C

Cable Type : 30/24AWG

Compliance Standards : RoHS/CE/FCC

Product Type : Fiber Optic Transceivers

Type : SFP28 to SFP28

Data Transfer Rate : 25 Gbps

Distance : 1m 2m 3m 5m

Temp : 0~70

Contact Now

Description

High-speed SFP28 Cable 25Gb DAC comply with IEEE P802.3by Ethernet standard and SFF-8402 SFP28 standard. It is a high-performance, cost-effective I/O solution for 25GB Ethernet and 25G Fiber Channel applications, which can achieve high port density, configurability and utilization at a very low cost and reduce power budget. Its transmission distance can reach 5 meters.

Technical Parameter

Product Model	SFP H25Gb Cu5m
Transmission rate	25G
Transmission distance	1-5M (optional)
Packaging form	SFP28 to SFP28
Cable Type	30AWG/24AWG
Brand	YINGDA
Compatible with brand	Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature	0~70℃
Warranty	3Years
Cable material	PVC
Power supply voltage	3.3V

Features

Supports hot-swappable SFP28 form factor
Compliant with SFF-8431/SFF-8432
Compliant with SFP+ MSA and 10GSFP+Cu standards
Maximum rate up to 25.7815 Gbps
Connection length up to 5 meters via active copper cable
Enhanced EMI/EMC performance
Provide cable sizes from 30AWG to 28AWG
I2C-based two-wire serial interface with customizable EEPROM signature
Maximum power consumption 0.5W
Compliant with RoHS 6.0
2-3 working days fast delivery if a standard products

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter

Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...

25G DAC Cable SFP28 To SFP28 Interface With Passive Copper Twinax Fiber Cable 5 Meter

Wide Application

25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU



More DAC cable for optional
  Item# Transmission rate Transmission distance Cable Type Packaging form
 SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
 SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
 QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
 QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
 QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
 QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
