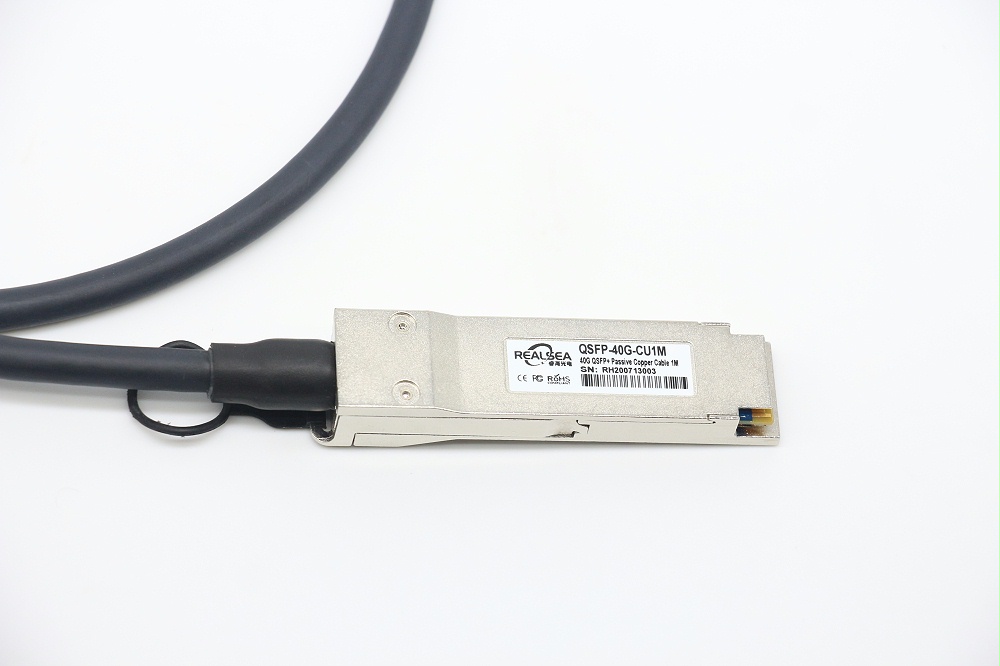

40G SFP DAC Cable QSFP+ To QSFP+ Passive Copper Cable PVC Black

Name: 40G SFP DAC Cable QSFP To QSFP Passive Copper Cable PVC Black
Brand: YINGDA
Price: 7 USD

China 40G SFP DAC Cable QSFP+ To QSFP+ Passive Copper Cable PVC Black factory

Brand Name : YINGDA

Model Number : qsfp h40g cu3m

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : US$7-20

Payment Terms : D/A,D/P,T/T

Supply Ability : 1000000per month

Delivery Time : 3-7 working days

Connector : QSFP+ to QSFP+

Operating Temperature : 0°C to 70°C

Cable Type : 30/24AWG

Compliance Standards : RoHS/CE/FCC

Product Type : Fiber Optic Transceivers

Type : QSFP+ to QSFP+

Data Transfer Rate : 40 Gbps

Distance : 1m 2m 3m 5m

Temp : 0~70

Contact Now

Description

QSFP+ DAC high-speed cables are used in data center interconnection such as 40G Ethernet and InfiniBand. 100% perfect compatibility with a full range of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other equipment. QSFP+ high-speed cables have the advantages of extremely high reliability, low cost and low power consumption.

Technical Parameter

Product Model	SFP H25Gb Cu5m
Transmission rate	40G
Transmission distance	1-5M (optional)
Packaging form	QSFP+ to QSFP+
Cable Type	30AWG/24AWG
Brand	YINGDA
Compatible with brand	Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature	0~70℃
Warranty	3Years
Cable material	PVC
Power supply voltage	3.3V

Features

Supports hot-swappable QSFP+ form factor
4-channel full-duplex active copper transceiver
Maximum rate up to 41.25Gbps
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-CR4 standards
Compatible with Ethernet Fibre Channel and InfiniBand SDR/DDR/QDR standards
Connection length up to 5 meters via passive copper cable
Enhanced EMI/EMC performance
Available cable sizes from 30AWG to 24AWG
I2C-based two-wire serial interface with customizable EEPROM signature
Operating temperature: 0~70℃
RoHS 6.0 compliant

40G SFP DAC Cable QSFP+ To QSFP+ Passive Copper Cable PVC Black

Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...

40G SFP DAC Cable QSFP+ To QSFP+ Passive Copper Cable PVC Black

Wide Application

25G Ethernet
  Data storage and communications industry switches/routers/hba
  Enterprise Networking SAN
  High Performance Computing Clusters
  High-end servers
  InfiniBand QDR and Base Station/ BBU/ RRU



More DAC cable for optional
  	  		  		  		  		  		  	  	  			Item#  			Transmission rate  			Transmission distance  			Cable Type  			Packaging form
  			SFP-10G-CUxM  			10G  			1-10M  			30/24AWG  			SFP+ to SFP+
  			SFP28-25G-CUxM  			25G  			1-5M  			30/26AWG  			SFP28 to SFP28
  			QSFP-40G-CUxM  			40G  			1-7M  			30/24AWG  			QSFP+ to QSFP+
  			QSFP28-100G-CUxM  			100G  			1-5M  			30/26AWG  			QSFP28 to QSFP28
  			QSFP-4x10G-CUxM  			40G  			1-7M  			30/24AWG  			QSFP+ to 4SFP+
  			QSFP28-4x25G-CUxM  			100G  			1-5M  			30/26AWG  			QSFP28 to 4SFP28
