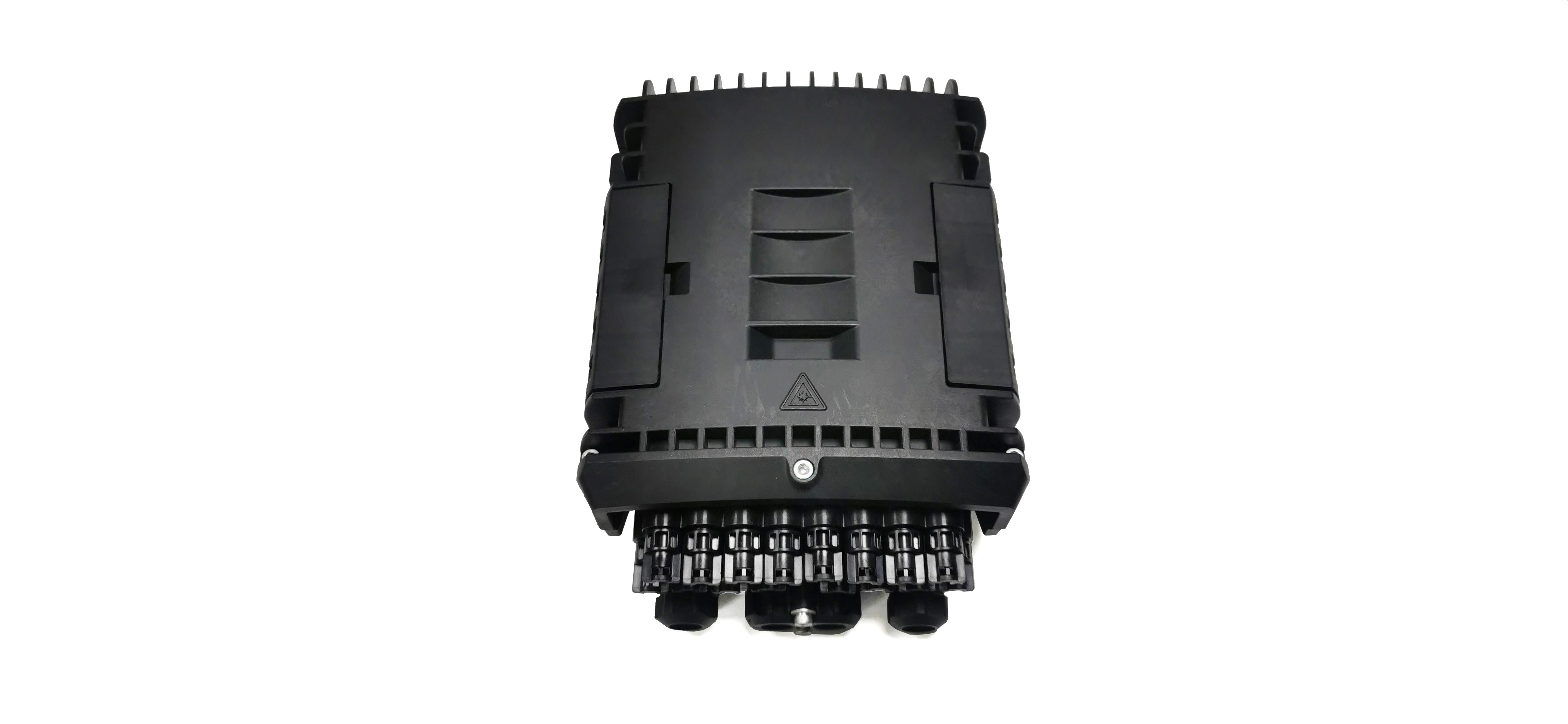

IP68 16 Ports Fiber Optic Distribution Box 96Cores 1x16 Splitter Splice Closure SC PP
FDB0216F-S fiber access termination closure is able to hold up to 16-24 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system.It integrates fibers plicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
- Water-proof design with IP-68 Protection level.
- Integrated with flap-up splice cassette and adaptor holder.
- Impact test:IK10.Pull Force:100N,Full rugged design.
- All stainless metal plate and anti-rusting bolts,nuts.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 2 pcs of 1*8 Splitter can be installed as an option.
- Mechanical sealing structure and mid-span cable entry
- 16 ports cable entrance for drop cable.
- 24 adaptors for drop cable patching.
Cinfiguration
| Material | Size | Max Capacity | Plc Splitter | Nos of Adapter | Weight | Color |
| Strengthen Polymer Plastic | A*B*C(mm)3 335*240*122 | Splice 48fibers (4trays, 12fiber/tray) | PLC Splitter 2pcs of 1x8 | 16pcs of SC | 3.2kg | Black |
Applications
- Wall mounting and pole mounting installtion
- FTTH pre-installation and filed installation
- 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts protection sleeves,
hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
Optional Accessories
Pole ring
Product Details
Lock system is 2Allen screws at both sides with 3pcs Hexagonal screws, which ensure the good performance of waterproof. Top cover wit strength lines and laser mark. If customer need print logo, it is ok.
Internal is with 4pcs splice trays, 2 are higher, 2 are thinner. All for fusion splice or splitter. There are 16pcs SC adapters holder too.
There are 4sets of cable fixture for feeder cable enter the box, cable clamps can put on it. All the metal parts are stainless steel.
The cable ports are the same as FDB0216F splice closure, 1uncut port, 2 cable glands and 16pcs drop cable ports.
It can use for 2mm, 4mm, or 7mm drop cable, different rubber seals and cable exit fixture.
The whole internal part is with a white base, which is install on bottom with screws, and at boths sides, there is cable wiring guide lines.
