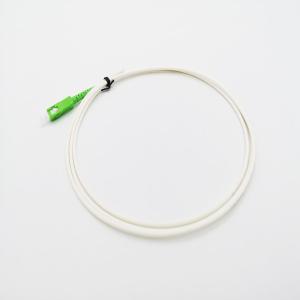

Factory SC/APC SM SX Pigtails 1.5M Fiber Optic Pigtails 2.0mm 3.0mm White Cable for indoor FTTH
SC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed
the SC Pigtail for TelCo environment uses. Hence, SC stands for Lucent Pigtails. SC fiber Pigtails
have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.
SC Fiber Optic Pigtail use a 2.5 mm ferrule, SC gives excellent performance and is greatly preferred for single mode transmission.
YINGDA also can offer Uniboot pigtails. SC Unibody is fully compatible with the original SC family of
single-mode and multimode Pigtails, adapters and associated components, manufactured under
a worldwide license from OFS Fitel. The Unibody features a compact, pull-proof design with RJ-45
style interface, and features a one-piece molded housing with internal strength member, for
significantly improved 90 side-pull performance under Telcordia GR-326-CORE testing.
Features
- Insertion Loss low
- High Return Loss
- Good Repeat ability
- Good Exchange ability
- High Temperature Stability
- Comply with YD/T 1272.4-2007 specification
- 8 Degree Angled physical contact polishing (APC)
- Fast delivery 1-3 working days
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX networks
Specification
| Connector type | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
| Cable Type | Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Single mode Master); ≤ 0.25dB (For Single mode Standard) ; ≤ 0.25dB (For Multi-mode) ; Tested by JDS RM 3750 |
| Return Loss (For Single mode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeat ability | ±0.1dB |
| Operating Temperature | -40°C to 85°C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
