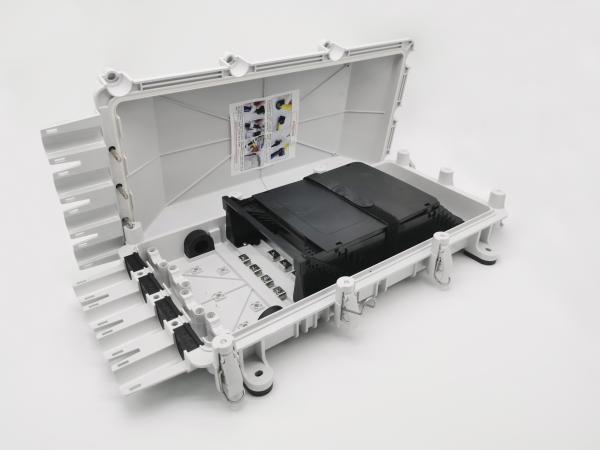

4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey

Brand Name : yingda

Model Number : CAU 256

Certification : ISO,CE, ROHS

Place of Origin : china

MOQ : 100 pcs

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 10-15days

Packaging Details : 1pc / box, 5 pcs / carton box

Material : PC+ABS

color : grey

ip grade : IP65

Installation method : wall mount

cable port : 4 round ports, 2 reserved ports internal

max fusion : 8 splice tray, max. 256 cores dual fiber

box type : fiber optic splice closure

feature : cable go through the box without cutting, mid span

Contact Now

4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey

4 Ports 256 Core Fiber Optic Fusion Splice Jounction Box Outdoor Wall Mounted Plastic Grey

It is a universal access junction box that allows the continuity and segregation of medium capacity optical cables used in the deployment of optical power and transport networks. The design of the box allows the mechanical continuity of the tensile elements of the cables and protects the fibers, the unions and the optical devices facilitating the organization of the splices and the storage of the fiber surplus.The box is airtight and resistant to weather conditions so it can be installed both outside and inside buildings in log chambers, arches, walls, poles or cable galleries.

Specification

Model CAU-256
Dimension (L*W*H) 555*106*290mm
Max. Capacity 256cores (8tray, double layer)
Cable port&diameter 6round (4:7-12mm; 2:22mm)
Material PC+ABS
Working temperature -40 ~+70°C
Mechanical parameters

Static load> 1000 N (25 cm2, 10min).

Degree of protection against mechanical impacts IK09 (20 J).
Axial tension:Cable load> D / 45 mm x 1000 N. D: cable diameter. 1 hour per cable. Cable offset <3 mm
Cable flexion:30 ° max. 500 N. Application of force: 400 mm from the end of the seal. No. of cycles: 5 / cable.
Cable twist:Maximum rotation torque 90 ° / max 50 N. Force application: 400 mm from the sealing end. No. of cycles: 5 / cable.
Vibration Frequency:10 to 15Hz. Speed: one octave per minute. Cycle: sinusoidal; amplitude: 3 mm (6 mm crest to crest). Cable clamp: 500 mm from the end of the seal. Duration: 2 hours per axis

4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey

Features

  • It has 4 independent cable accesses at one end. Each allows the individualized input of at least 2 medium capacity multifiber cables (double inputs) and up to 6 small capacity optical cables (7mm.).

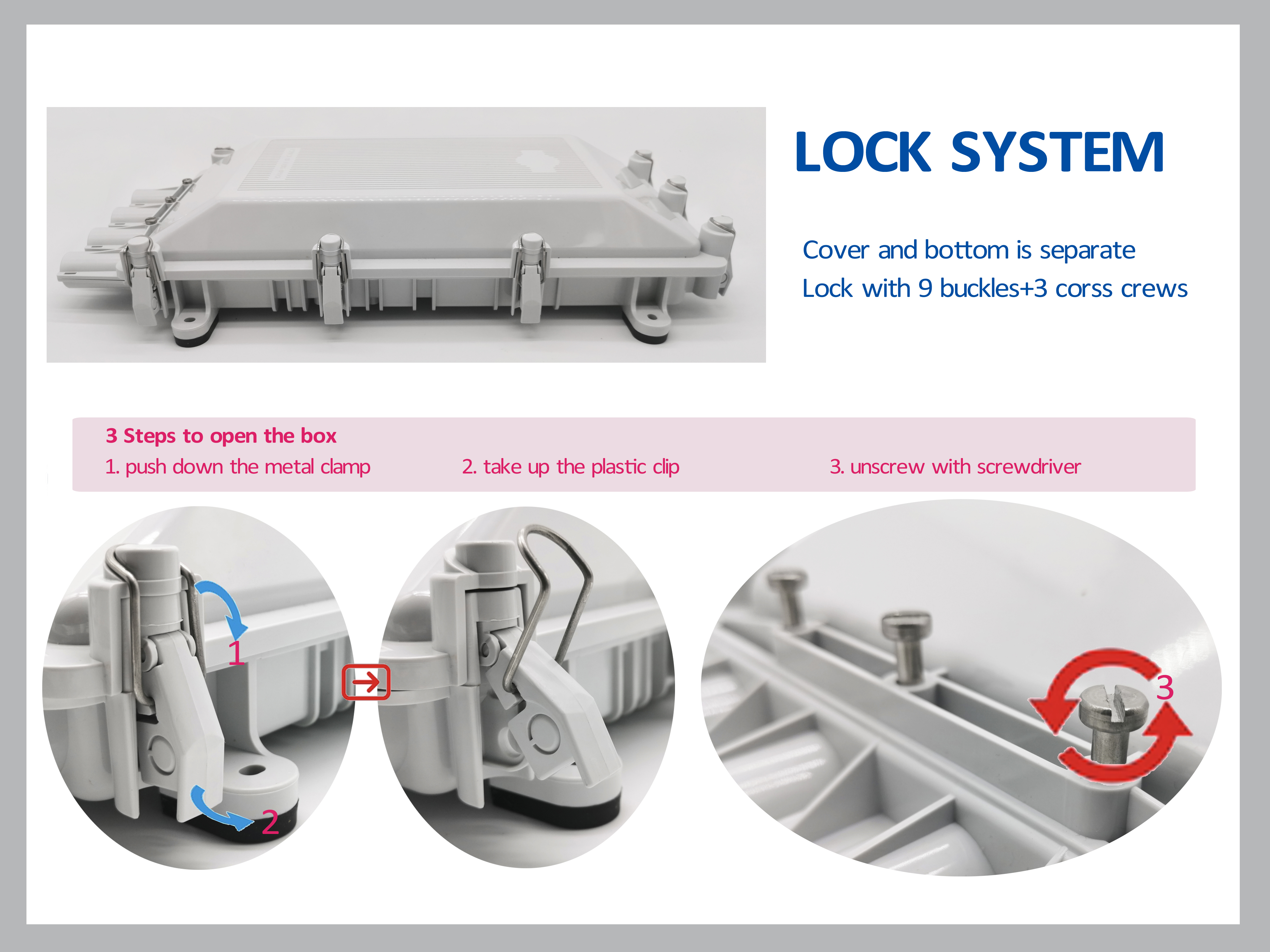

  • The closing cover is completely assembled and removed without the need for special tools thanks to the clip-type seal.
  • The sealing of box access is made by rubber gaskets with pre-cut entries.
  • Wide and easily accessible rectangular splice trays with extensible tabs for better fiber storage up to 32 F.O. (double layer). Both the support block and the individual trays allow 90 ° rotation and interlocking in fixed positions to facilitate installation.
  • The boxes can be opened, closed and manipulated without interrupting the circuits in operation. It allows to join and segregate cables without having to cut all the fibers as well as the proper storage of the tubes and / or leftover fibers of the cables.
  • The box once closed is completely airtight and resistant to weather conditions. Degree of protection IP-68.
  • The materials are designed for a minimum duration of 20 years.


4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
