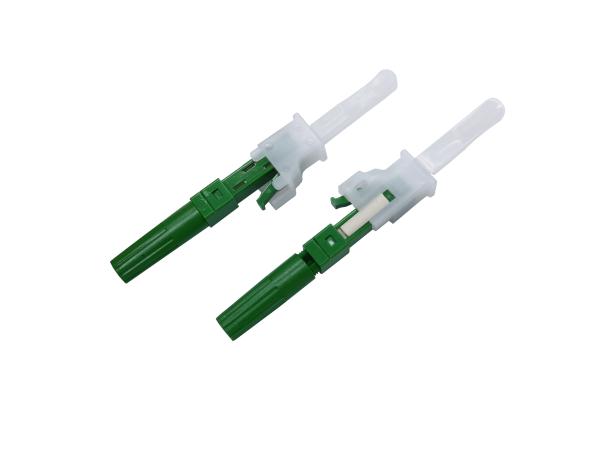

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable

Brand Name : YINGDA

Model Number : YDFIC-002-LC/APC

Certification : ISO, CE, ROHS

Place of Origin : china

MOQ : 10 PCS

Price : 0.19USD-0.72USD

Payment Terms : T/T or western Union

Supply Ability : 10,000 pcs per day

Delivery Time : 3-5 working days after get payment

Packaging Details : 1pc /bag,1000 pcs / carton box

material : PEI

length : 45mm

suitable for cable : 2.0*1.6mm, 3mm, 0.9mm, 250um bare fiber

color : green, blue

feature : white long dust cap

ferrule : APC UPC ceramic ferrule

fiber type : single mode 9/125um

fiber count : 1 core

application : FTTH, FTTX, Data center

V groove material : Metal

product name : LC APC UPC fiber connector,LC APC UPC fiber optic connector,fiber cable connectors,field installable connector

Contact Now

1 Core APC UPC Field Installable Connector Single Mode 2.0*1.6 Mm Flat Drop Cable

LC APC Fast Field Mechanical Connector Optical Fiber Single mode 1 Core 2.0*1.6 mm Flat Drop Cable

LC/APC Fast Field Installation Connector also called Mechanical connector, most people call it fast connector for short. It is a kind of optical on-site connector, used in field wiring operation and FTTH project where need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the

user equipment interface from damage, reduce the connection attenuation loss. This type Metal V Groove ensures the high

performance during high and low temperature.

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable

Specification

ITEM Technical Parameters
Applicable for 2.0*1.6mm drop cable, indoor cable 3mm, 1.6mm, 0.9MM, 250um bare fiber
Optical fiber diameter 125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > -45dB
Fastening strength of naked fiber >4 N
Fastening strength of naked fiber holder >8 N
Tensile strength >10 N
Using temperature -40～+75℃
On-line tensile strength (20 N) △ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times) △ IL ≤ 0.5dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m,

once per direction, totally 3 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB

Features

  • Do not need hot melt, pre-polished and curing ceramic ferrule, high quality, ensure <0.5dB loss and low return loss.
  • Metal V groove, unique design, it can effectively prevent the volatilization of matching gel and prolong the service life
  • Good resistance to high and low temperature changes, stable and reliable performance
  • Cable stripper length: 15mm coating / 10mm bare fiber
  • NOT ONLY USE FOR 2.0*1.6MM, but also for bare fiber 250um. 0.9mm, 3mm round cable.
  • Can made any length of fiber optic patch cord on-site
  • On-site installation, simple and quick operation, only 2 minutes
  • Mechanical and environmental performance conforms to GR-326-CORE standard.

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop CableLC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop CableLC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable

Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network

On-site constrction toolkits can be offer, please click the link below:

LC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop CableLC APC UPC Field Installable Fast Connector Single Mode 2.0*1.6mm Flat Drop Cable
