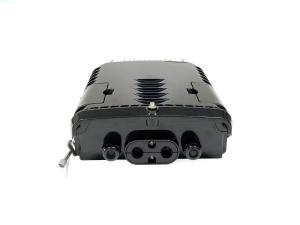

FDB0216HF fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Specification

Features

• The box casing is made of high quality engineering industrial plastic PC+ABS alloy material, strong and tough;
• Outdoor application and good UV resistant, IP65 waterproof.
• Bottom with splitter tube fix slot, and input connector slot, humanity design
• Maximum12F splice capacity, stainless anti-rust bolts and nuts.
• The adapter bracket has two fulcrums, which can be directly inserted into the reserved hole at the bottom, and can be taken out by hand, which is convenient for fiber reeling, construction, maintenance and expansion.
• Fiber bend radius control more than 35mm.
• 180 degree access with 2pcs of buckled lock structure (Allen screws).

Application

• Wall-mounted, Pole-mounted Installation
• Suitable for ftth pre-connectorized drop cable with SC/LC connectors

Standard accessory

Splice tray 2pcs, 4pcs wall mount expansion screws, 16pcs fiber protective sleeve, 4pcs cable clamp,nylon ties, adapter plate for 16 x adapters, cable protection tube, key, PG 13.5 cable glands for distribution ports, Pole mounted kits (optional).

Product Details

This fibra optica caja de terminal box is 16 ports NAP, and widely used in FTTH netowrk, the sturcture is easy to open with key and 2 buckles at both sides, and the metal key is fixed on the side with nylon tie. The box cover is hinged with bottom, and there are stregnth strips on cover to make it more tough.

The fiber optic splitter box can be outdoor wall mount or pole mount:

There are metal sheets to fix on the back of the box for wall mounted, if need pole mount, will add 2pcs stainless steel straps.

The internal is flexible with 3 different design, all fix on the bottom of the box with self tapping screws.

1. adapter plate with 2 splice trays,max. 16pcs SC adapters, and 24cores fusion slots. There is velcro tapes to fix the trays tightly.

2. 2layers: 1st layer is a plate,front side is 16pcs SC adapters holder in 2 frames, back side is for splitter slots holder, and 2pcs SC adapter holers for input of splitters, the 2nd layer is for fusion splice, which totally 16pcs sleeve can not fix.

3. splitter cassette holder, maximum can use 2pcs 1x8 splitter, or 1pc 1x16 splitter modules, at back of the plate, it is the slots for sleeves if possible.

There is four sets of cable clamps to fix on the cable on the bottom, all metal parts are stainless steel material.

Cable ports is special, cable inlet is 1mid span + 2 cable glands PG13.5, cable outlet are16pcs flat drop cable slots with rubber and white fixture to make it in place.

The box body is made of high stregnth plastic engineering ABS PC material, which is suitable for outdoor use, anti-UV, long life time about 20years, laser mark is label sticker.
