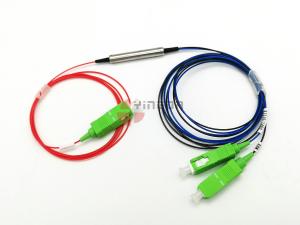

1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter

Name: 1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter
Brand: Yingda
Price: 1.1 USD

China 1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter factory

Brand Name : Yingda

Model Number : FWDM-T1550 R1310/1490

Certification : ISO

Place of Origin : china

MOQ : 100pcs

Price : 1.1USD-4.58USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 20000pcs per month

Delivery Time : 7days

Packaging Details : 1pc/box, 10pcs/master box

reflection : 1310/1490nm

transmition : 1550nm

connector type : SC/UPC SC/APC

fiber type : SMF-28e

package : blister box, 1pc/ box

Contact Now

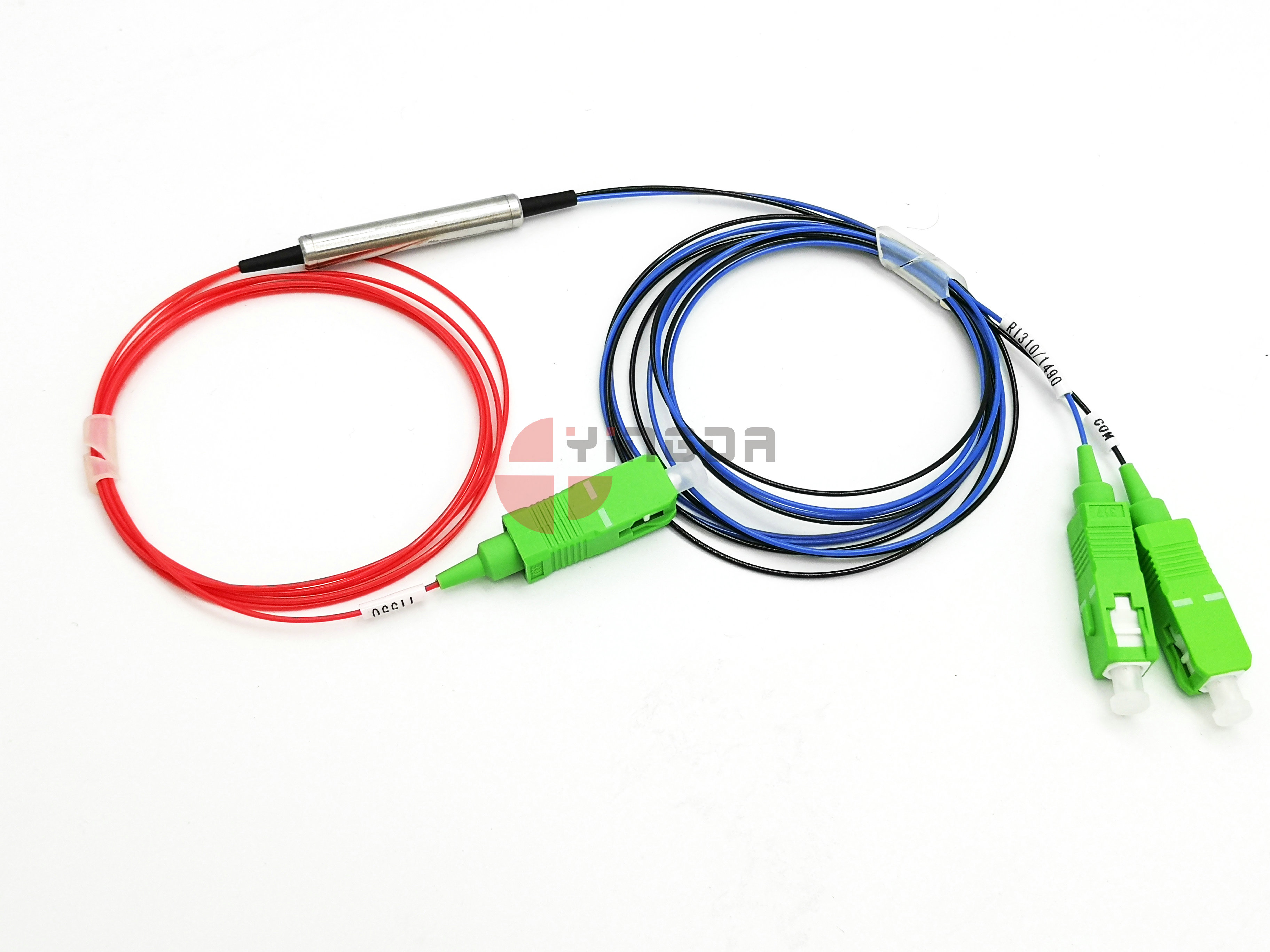

1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter

High isolation optical WDM T1550 R1310/1490 FWDM SC/UPC SC/APC SMF-28e

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

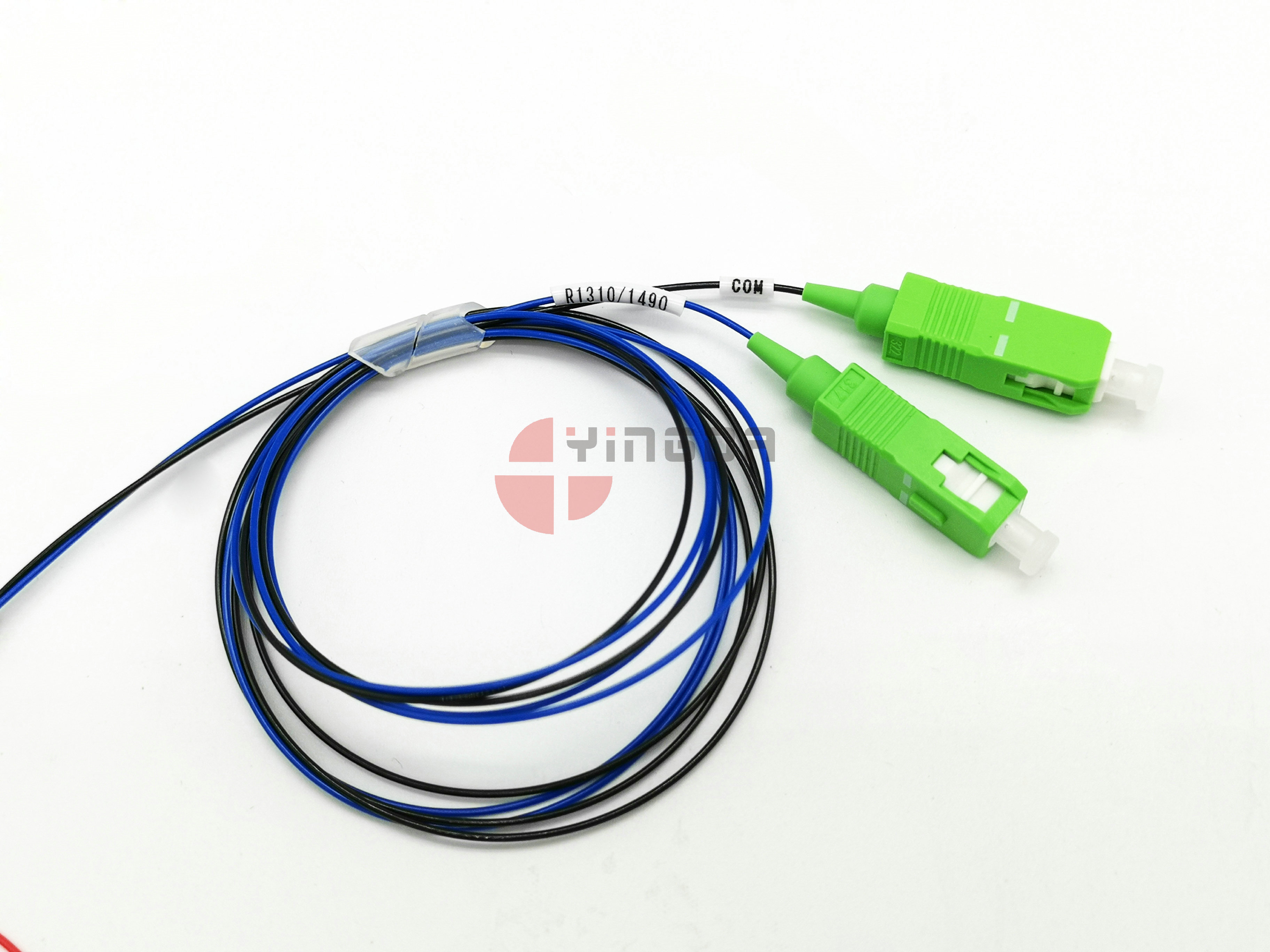

1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter

Specification

Parameter		Unit	Value
Pass band	Wavelength range	nm	1260-1360
	Typ. Insertion loss	dB	0.6
	Max. Insertion loss	dB	0.8
	Typ. isolation	dB	40
	Min. Isolation	dB	35
Reflection band	Wavelength range	nm	1460-1620
	Typ. Insertion loss	dB	0.6
	Max. Insertion loss	dB	0.8
	Typ. isolation	dB	40
	Min. Isolation	dB	35
Max. PDL		dB	0.25
Max. PMD		dB	0.1
Min. Return loss		dB	50
Fiber type			Corning SMF-28e
Max. Average optical power		mW	300
Max. Tensile load		N	5
Operating temperature		°C	-5~+70
Storage temperature		°C	-40~+85
Dimension		nm	5.535 steel tube or 10080*10mm ABS box

NOTE:

For device with connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

Package information:

1550nm SC UPC SC APC SMF 28e Optical WDM FWDM Splitter
