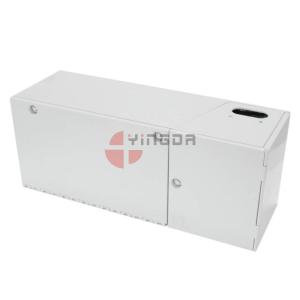

48Cores 2 Door Wall Mount Multi-operator Fiber Distribution Hub Termianl Box ODB CTO
It is an optical distribution box for Fiber to The Home application, pooling module for splicing, coupling ,and stirring up to 48 optical fibers. The modules can be stacked to support configuration of greater capacity or to allow the pooling between building operators and commercial operator. It allows the connection between the cable coming from the outside and the cable of the riser.
Specification
| Model | FDB0248C |
| Dimension(W*H*D) mm | 450*180*150 |
| Net weight | 3.2kg |
| Splice tray qty | 6 pcs |
| Max capacity | 96 cores (6*16F) + 48 SC adapters |
| Splitter qty | Max. 4 pcs 1:16 PLC splitter |
| Colour | Grey |
| Working temperature | -25°C ~ 55°C (5 to 95% Humedad relativa) |
| Protection Level | IP30 |
Product Detail
Oeverview: 2 doors, 2 holes at top and bottom. Plastic Wall mounted
Cable entry at left side, 2 round +1 mid span. 6 splice tray can be take off by hand with plastic holder.
adapter panel 48SC divide the splitter, fusion and cable wiring, humanity design, good shape, light weight.
the splice tray is overlap with nylon tie fixed to hold it in space, each tray is 16cores fusion maximum. have enough fiber storage and management area.
Features
- Separate compartments for splicing and patching. Each compartment has a door closed by a triangle key system
- Possible scalability depending on the number of operators addressing the building
- Optical cable access left with lashing system
- Standardized dimensions, according to TELEFONICA recommendations.

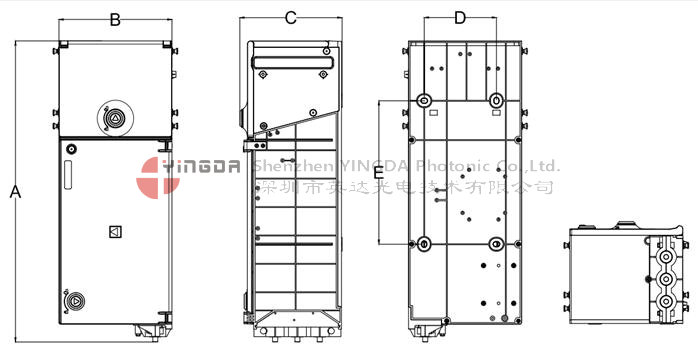

Box Dimension
| Size A*B*C (mm) | Wall Installation SizeD*E(mm) | Cable entry size(mm) |
| 478*180*163 | 115*228 | 20 |
Wiring Diagram
