Fiber Optic Access Cable Jumper GYFJH LSZH G657A2 SC/APC flip top cover IP67 FTTH
IP67 outdoor use MINI-SC waterproof reinforced connector is a small high waterproof SC single core waterproof connector. Built-in SC connector core better reduce the size of the waterproof connector. It is made of special plastic shell (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad, its sealing waterproof performance up to IP67 level. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.
Features:
● Spiral clamping mechanism ensures long-term reliable connection
● Guide mechanism, can be blinded with one hand, simple and quick, connect and install
● Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
● compact size, easy to operate, durable
● Through the wall seal design
● Reduce welding, connect directly to achieve interconnection
Product parameters:
| Insertion loss | ≤ 0.2db | Repeat ability | ≤ 0.5db |
| Return loss | ≥65dB (APC); 55dB(UPC) | Operating temperature | -40 to 85°C |
| Mating time | ≥ 1000 times | Waterproof grade | IP67 |
Package information:
if cable is not long, will use plastic bag for each item, if longer, will use plastic film to warp and protect it.
there will be sticker on the bag or film to identify, can print customer LOGO or model, etc.
Application:
● Fiber optic communications in harsh outdoor environments
● Outdoor communication equipment connection
● Huawei waterproof fiber equipment SC port
● Remote wireless base station
● FTTx wiring project
Product details:

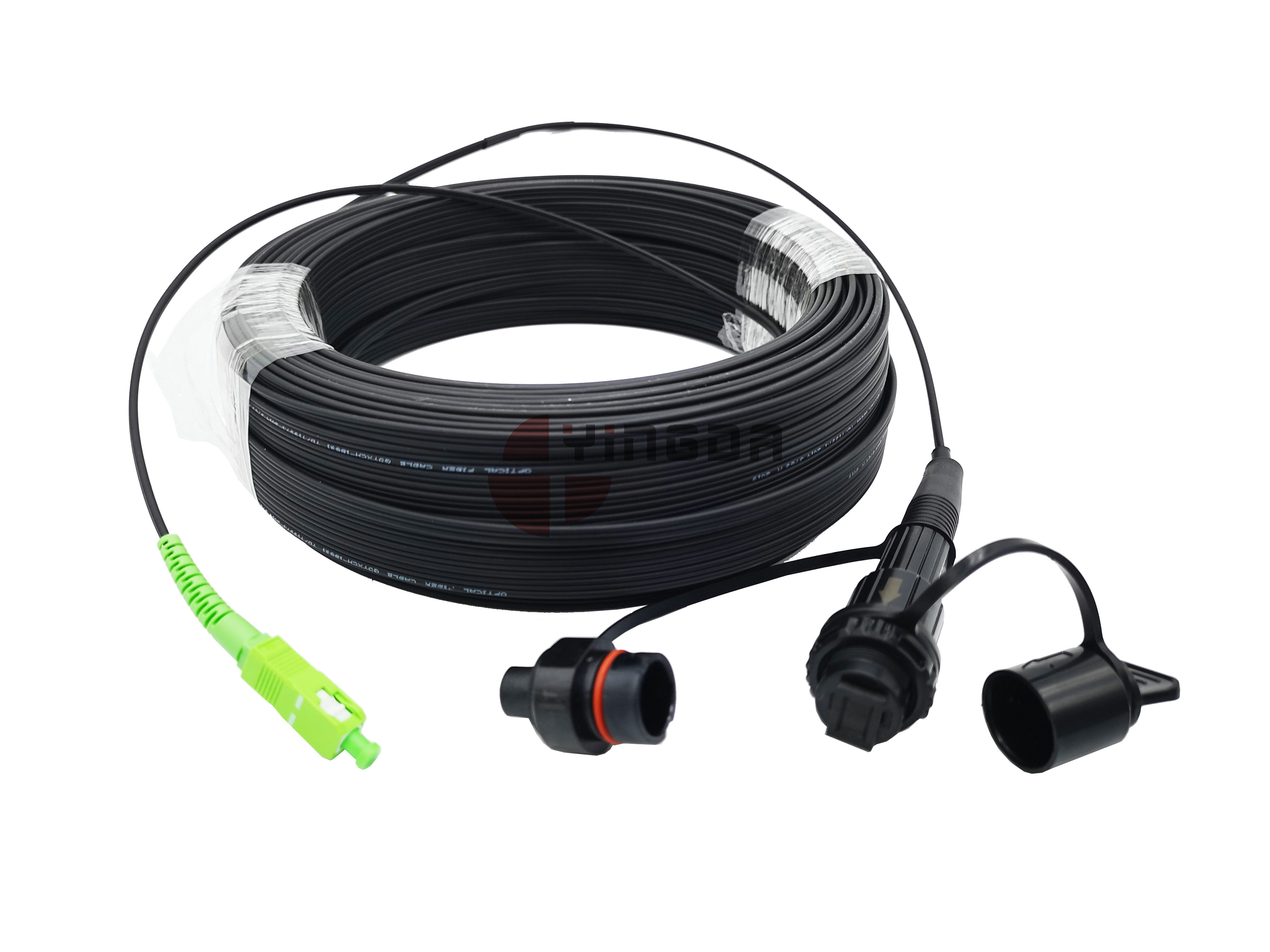

Each will pack in plastic film,can use SC/UPC or SC/APC connectors inside. Green is SC/APC, blue is SC/UPC.
The adapter and waterproof plug is compatible, the dust cap for both can be one set to prevent dust after connection is done.
2 TYPES of cable can be used to connect with the box:

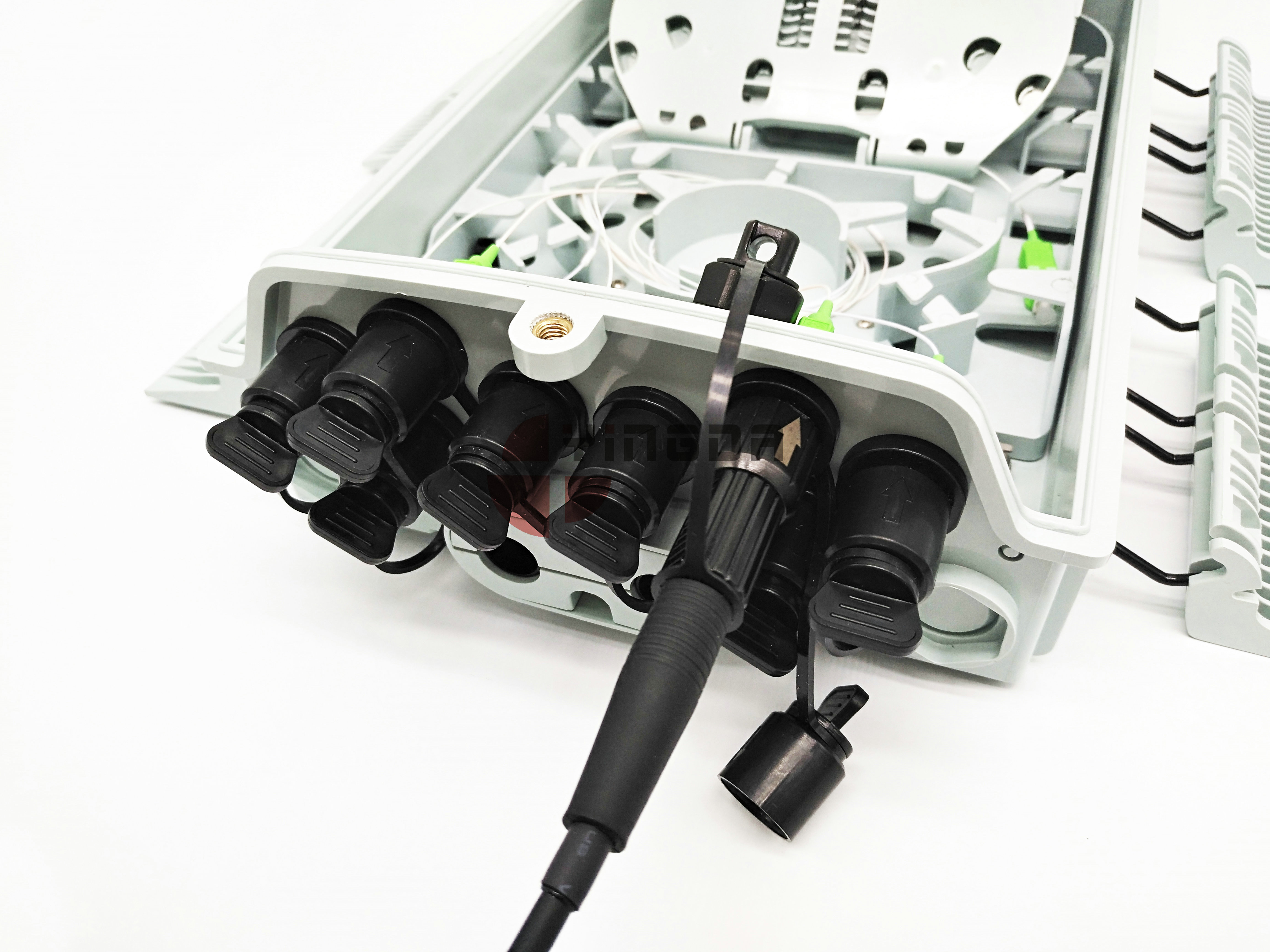

How to use the cable on box?
Take off the dust cap of the mini connectors and the adapter, insert connector into alignment hole position on the adapter, turn it around to fix it tight.
Order information:
| PN:YDPC | - | xxxx | - | xxxx |
| YD= yingda | | MS=Mini SC | | 25=2x5mm drop cable |
| PC= patch cord | | SA=SC/APC | | 23=2x3mm drop cable |
| | | SU-SC/UPC | | 50=5mm round cable |
| | | NN=none | | 70=7mm round cable |
