2 Port LC/APC Duplex Optical Fiber End User Subscriber Box Plastic Wall Mount
This wall outlet is an indoor terminal applied in the FTTX network to connect the drop cable and optical devices through fiber port.
Features
- Made of high quality brand new ABS+PC, anti-collision, flame retardant, resistance to impact.
- All the materials complied with ROHS standard.
- Fiber cable inlets in 3 directions, supports the cable inlets for different scenarios.
- white color, compact size, large storage and management area.
- max. 2 SC or LC duplex couplers
- wall mount screws included during delivery.
Specification
| Model | FTB86I |
| Dimension(H×W×D) mm | 70*116*15MM |
| Max.capacity | 2 SC |
| Humidity | 93%(+30°C) |
| Connect Models | Fusion splicing, Mechanical Splicing, FMC |
| Material | ABS+PC |
| Air Pressure | 70KPa~106KPa |
| Working temperature | -25~+60°C |
| Installation Models | Wall Mounted |
| Drop cable (Flat) | Indoor Flat Drop cable 2mm×3mm |
| Color | White |
Product details

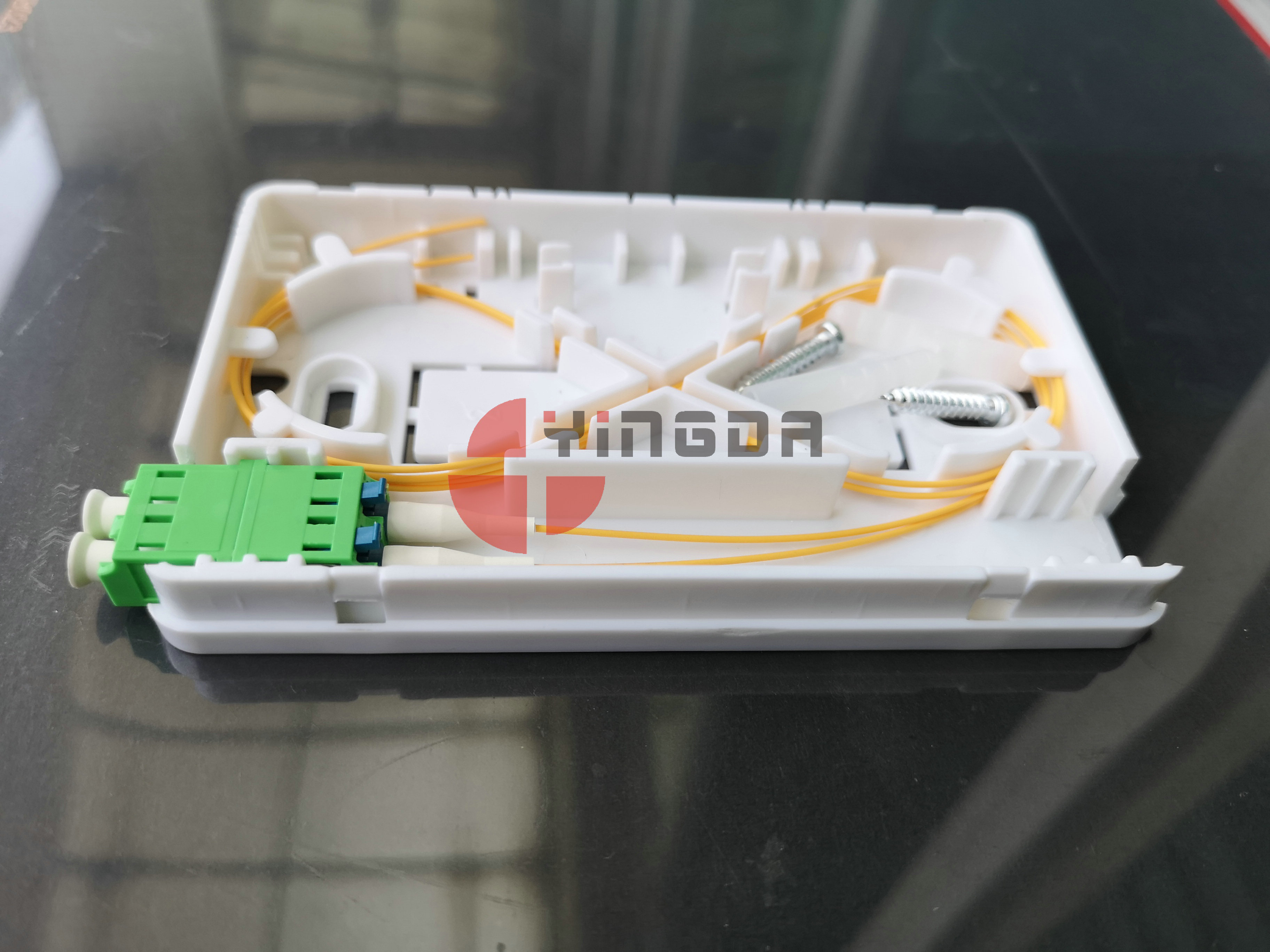

the box is completed with LC/APC duplex adpaters without flange, can fusion 2cores single fiber.
2 pieces wall mount expansion screws is put inside of the box before delivery.
The box is long size, and large fibre storage and management system. it can use 2 pieces lc duplex adapters.
the box is brand new material:ABS+PC. and front side have 2 cable ports, each side 2pcs cable ports.
Standards Compliance
- TIA/EIA 568.C, Optical Fiber Cabling Components Standard
- IEC61754, Fiber optic connector interfaces Standard
- ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
- GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
- RoHS (Directive on Restriction of Hazardous Substances. )
Wall-mounted installation
Drill 2 holes over the wall based on the suitable size, place the expansion boltΦ5.5*30, place the box; to match up the holes and use bolt to fasten.
