16 Ports Wall Mount FTTH Fiber Optic Splitter Box 24 Adapters with 96 Fibers IP65

16 Ports Wall Mount FTTH Optical Distribution Box 24 Adapters with 96 Fibers IP65

This type optical distribution box is designed to seal with screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.

Applications

• Wall mounting and pole mounting installation
• FTTH pre-installation and filed installation
• 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable

Features

• Water-proof design with IP-65 Protection Level.
• Can be used indoor and outdoor, wall mount and pole mount
• Integrated with 4pcs flap-up splice cassette and adaptor holder
• All stainless metal plate and anti-rusting bolts, nuts
• Fiber bend radius control more than 40mm
• Suitable for the fusion splicer or mechanical splice
• 2 Pcs of 1*8 Splitter can be installed as an option
• Mechanical sealing structure and mid-span cable entry.
• 16 outports for drop cable

Product Introductions

Overview Back

• The size of whole box is 340*220*95mm.
• The box can be used indoor and outdoor, wall-mounted and pole mounted.

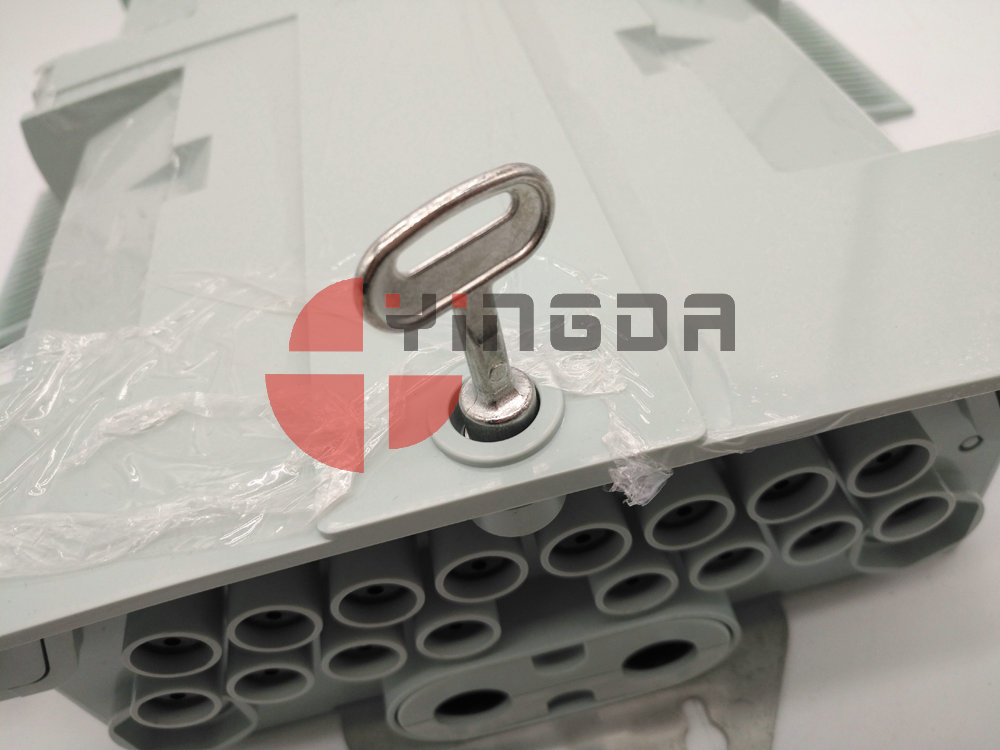

• The sealing method is screw and buckle, which offer the entire box excellent sealing performance.

• Box interior overview.
• These splice trays can be flipped up. They are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splicing, fix it in closure.

• Black strap can fix these splice trays well.
• Each tray can splice 24 fibers, so the max. capacity of box is 96 cores.
• There is a tool on the splice cassette cover. we can use the tool to coil and storage fibers.

• The adapter holder can accommodate max. 24pcs SC simplex adapters.

• FDB0216M box has 16 outputs for drop cable, 1 uncut port for main fiber cable and two reserved round cable ports. If customers require, we can install cable gland to the reserved ports.

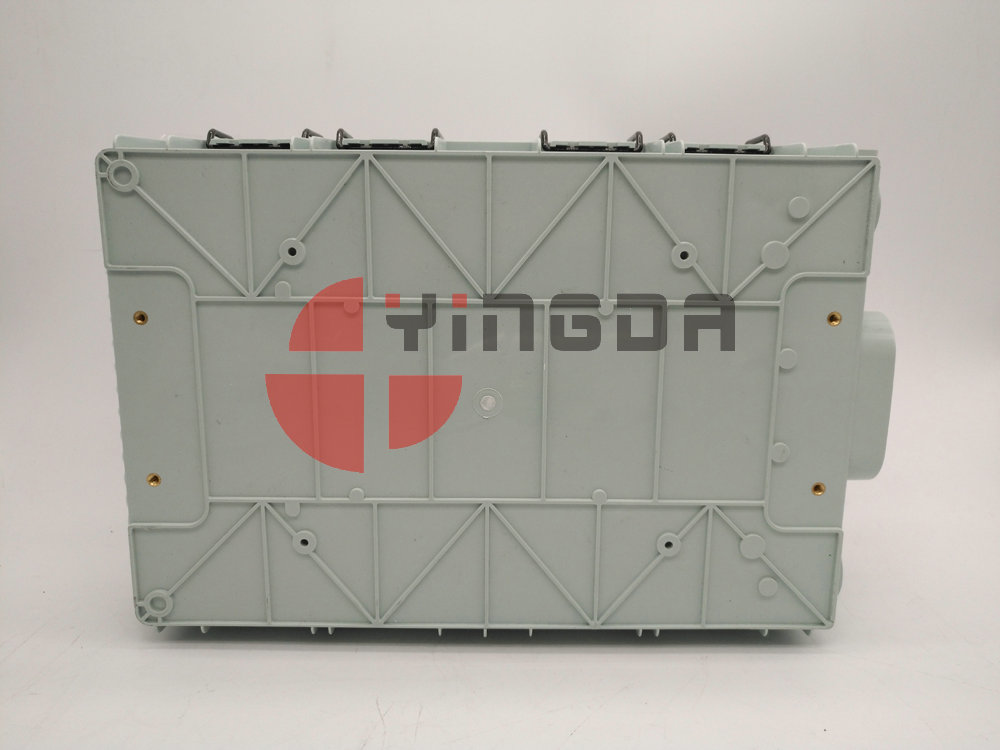

• The metal parts on the bottom of box are stainless steel.

• Standard Accessories

Specifications

fiber optic closure

optical distribution box
