Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount

Name: Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount
Brand: YINGDA
Price: 1 USD

China Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount factory

Brand Name : YINGDA

Model Number : FDB0216F

Certification : ISO

Place of Origin : china

MOQ : 200PCS

Price : NEGOTIABLE

Payment Terms : T/T, Western Union

Supply Ability : 100000PCS PER MONTH

Delivery Time : 1WEEK

Packaging Details : 1PC/BOX,4PCS/CARTON

material : PP

Dimension : 385*245*130mm

cable ports : 1uncut port(10-17.5mm)+ 2 round ports (8-17.5mm)

Drop cable : 16ports for 4mm or 7mm

maximum capacity : 96 cores single fiber

max. splitter : 1pc 2x16 or 1x16 splitter,2pcs 1x8 splitter steel tube

max. adapter : 24pcs SC/UPC or SC/APC

protection grade : IP68

installation method : pole mount or wall mount

Contact Now

IP68 PP 96Cores FTTH Fiber Optic Splice Box With SC/UPC Connecors, Fiber Access Terminal Box

FTTH drop cable type fiber optic splice & splitter closure features with ruggedness, which is ested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.

Features

Dis-mountable adaptor panel

Support midspan termination

Easy operation and installation

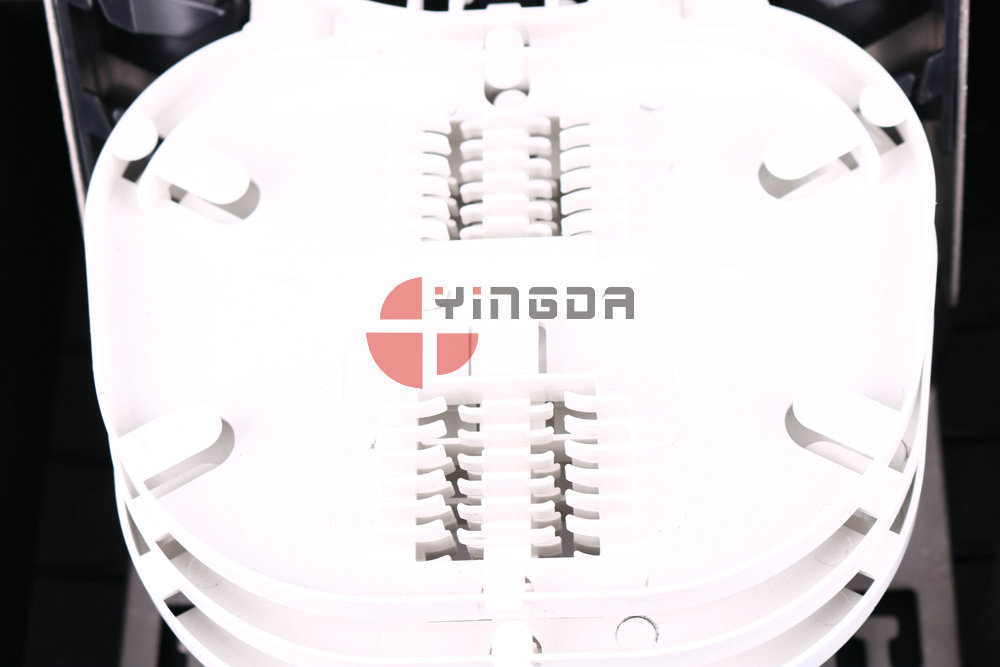

Rotatable and dis-mountable splice tray for easy splicing

Specification

Model	FDB0216F
Adapter	16pcs of SC
Cable ports	1 uncut port, 2round ports
Applicable cable diameter	Uncut port: 10-17.5mm, round ports:8-17.5mm
Drop cable ports	16ports
Applicable cable diameter	23mm FTTH drop cable, 25mm figure 8 FTTH drop cable
Dimension	385245130mm
Material	Modified polymer plastic
Sealing structure	Mechanical sealing
Color	Black
Maximum splicing capacity	96fibers (4trays, 24fibers/ tray)
Applicable spliter	1pc of 116 plc splitter or 2pcs 18 plc splitters
Sealing	Ip68
Impact test	IK10
Pull test	100N
Midspan entry	Yes
Storage (tube/micro cable)	Yes
Net weight	4kg
Gross weight	5kg
Packing	540410375mm (4pcs per carton)

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount

Product Tags:

fiber optic junction box

fiber optic cable junction box

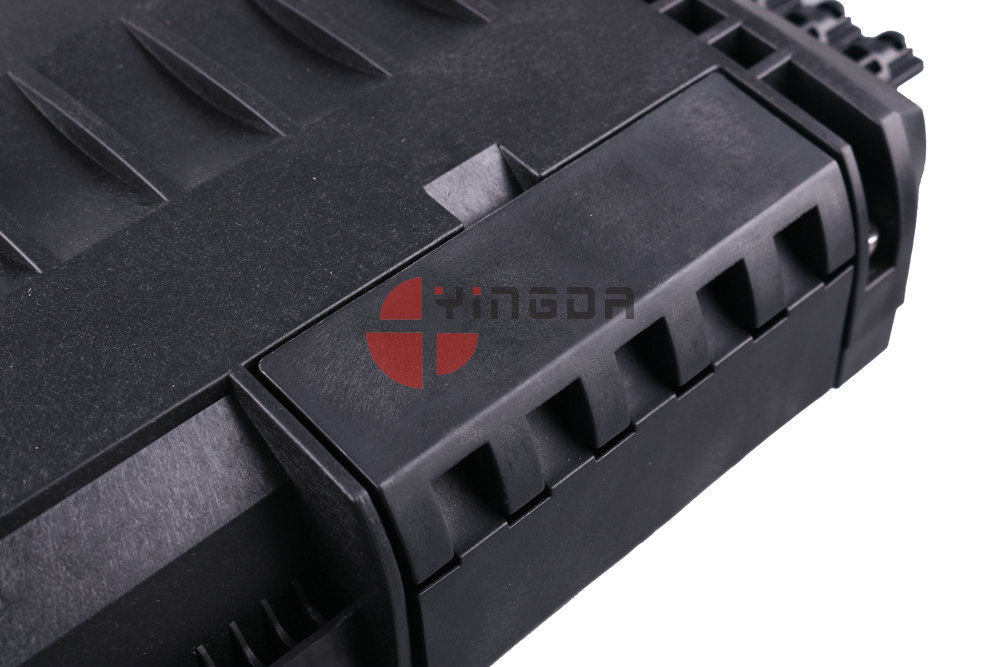

Waterproof PP 96 Cores Fiber Optic Splitter Box 16 Ports For Wall Mount Images
