16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure

Name: 16 Outputs Fiber Cable Joint Box Black 1 x 16 Splitter Optical Fiber Cable Joint Closure
Brand: YINGDA
Price: 1 USD

China 16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure factory

Brand Name : YINGDA

Model Number : FDB0216F

Certification : ISO

Place of Origin : china

MOQ : 200pcs

Price : negotiable

Payment Terms : T/T, Western Union

Delivery Time : 1week

Packaging Details : 1pc/box, 4pcs/carton

material : PP

color : black

dimension : 385*245*130mm

cable exit : 16outputs for drop cable

cable entry : 1uncut ports, 2round ports

cable diameter : 17.5mm, 4mm or 7.5mm drop cable

box type : splitter closure

adapter : 16pcs SC

splitter` : mini module splitter 1x16

Contact Now

1x16 Fiber Optical Splitter Box 16Outputs SC/APC PP Inline Closure 96Fibers Buckle Type for FTTH

FDB0216F is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Specification

Dimension(mm)	380×245×130	Max. capacity(Single fiber)	16
Weight(kg)	4.5~5	Sealing type	Mechanical

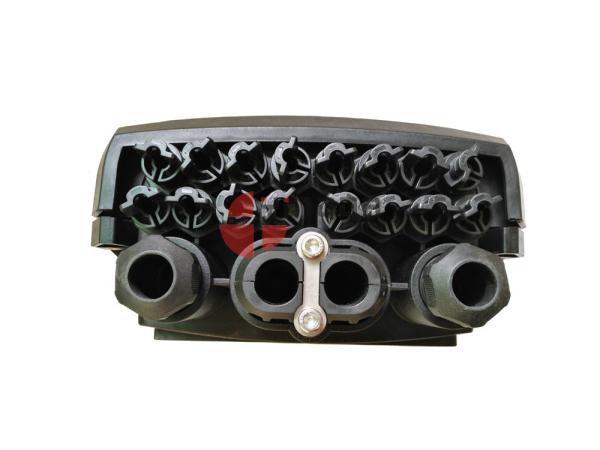

Cable ports	1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm. 16 output cable ports for cable diameter less than 4mm.	Single splice tray capacity(Single fiber)	16
Splice tray quantity	2pcs

16 Outputs Fiber Cable Joint Box , Black 1 x 16 Splitter Optical Fiber Cable Joint Closure

FRONT VIEW SIDE BUKCLE VIEW

INTERNAL VIEW -1 INTERNAL VIEW -2

Parts list

Main kits

S/N	Description	Quantity	Note
1	Lid	1	337(L)×242(W)×63(H)mm.
2	Base	1
3	Sealing ring	1	Box sealing
4	8202 sealing parts	16	Sealing cable ports
5	Splice tray	4	For cable splicing and storage
6	Splice tray cover	1
7	Splice tray bandage	1	Fixing several splice trays
8	Fastener bolt	2	Fixing lid and cover of closure
9	Buckle	4	Fixing lid and cover of closure
10	Tight nuts	16	Sealing soft cable ports
11	Tight tool	1	Special for tight the nuts
12	Cable fixing panel	1	Fixing un-cut cable
13	Adaptor installation panel	4	An adaptor panel for 6 SC simplex adaptors
14	Splice tray bracket	1	Install 4 splice trays
15	Top cover stopper	1	Limit top cover
16	Plastic nuts	2	Fixing cable

Standard parts

S/N	Description	Quantity	Note
17	Wall mounting kit	1	For wall mounting
18	Expansion anchor bolt	2	Parts of the wall mounting kit
19	Hexagon bolt	2	Parts of the wall mounting kit
20	Nylon tie(3*120mm)	12	Fixing cable
21	Fusion sleeve(Φ1.0*60mm)	According to the fiber cores.	Cable splicing
22	0.2m coil tube	1	Protect the fiber
23	Insulation tape	1	Accessorial fixation
24	0.5m EVA tube	1	Protect fiber
25	Drier	1
26	M6 internal hexagonal wrench	1	Tool to open the box
27	14# grommet	2	For cable dia. From 12-17.5mm
28	41# grommet	2	For cable dia. From 8-12mm
29	Plastic plug	4	Seal the cable port
30	Iron spanner	1	Tool

Optional parts

S/N	Description	Quantity	Note
25	Pole mounting kit	1	For pole mounting
26	Valve	1	Testing sealing performance
