8 Ports Fiber Optic Termination Box, NAP Indoor with 1x8 Splitter Distribution Box White FTTH SC/UPC Connectors
This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.
The entry 2ports can use multi-fiber cable maximum diameter 12mm. The output ports 8pcs FTTH 2x3mm drop cable or 3mm soft cable. Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.
Fiber Optic Distribution Box Features
- Whole box is made of engineering plastic ABS+PC brand new material, white color.
- The lid of the box have round edges, and closed by allen screws, anti-theft, more safer.
- Two covers, one is for front adapter operation, the other is for cable fusion and feeder cable in and out, independent space design, more secure and reasonable.
- Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.
- There is 1 splice tray for extra fiber, and max. Fusion 4cores single fiber.
- All the metal parts is stainless steel AISI-303 and resistant to the corrosion in normal temperature.
- Each adapter holder is individual, not a whole set of adapter panel. Each one can turn 360°degree, it is much easier to use, change adapters, or future maintainence.
- All the materials used is non toxic and dermatologically safe.
- The materials high quality ensure a minimum period of 20 years.
- In front there is cable management rods for better operation.
fiber junction box NAP 8 Cores FTTH Box Specification
| Model | FTB008 |
| Dimension | 170*130*40mm (H*W*D) |
| Cable ports | 2 inlet, 8 outlet |
| Cable dimeter | In:12mm, out: 3mm or 2x3mm drop cable |
| Installation | Wall mounted |
| Max. Fusion | 4 cores (single fiber) |
| Splice tray | 1pc |
| PLC Splitter | 1x2,1x4,1x8 mini splitter |
| Max. Adapter | 8pcs SC simplex without flange |
| Material | ABS+PC |
| Color | White |
optical distribution cabinet 8 Cores Indoor Wall Mount Termination Box Product Details
Front overview, white, ABS+PC material, Froint cover is fix by screw with bottom

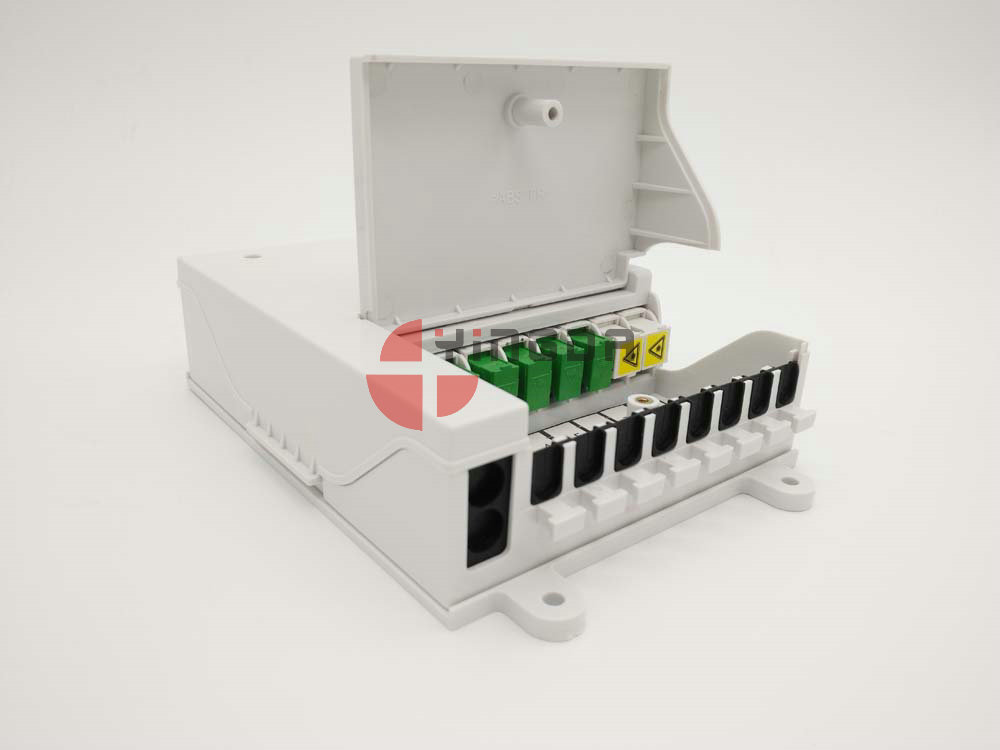

Left: feeder cable entry and exit 8pcs SC adapter and cable outports
Right: drop cable or soft cable exit
Internal overview Internal overview
splice tray max. fusion 4 single fibers adapter holder is 360degree turn, better use
adapter is shutter type, normal is ok label marks for user to identify fiber route
There are stainnless steel screws and rods Cover and bottom is seperate,not with hinge
1pcs Splice tray for fusion and fiber storage Box bottom is wall mounted with screws on wall
clip connection with the bottom of the box strengthen lines for longer life time
Fiber optic splice enclosure Standard package
The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.
1*8 fiber optic cable box Accessories like below:
- Cable nylon ties
- Heat shrinkable tube
- Wall mount expansion screws
- Sealing of inputs or outputs
- User manual
- Adapters or plc splitter
fiber distribution cabinet UNCUT PORT SERIES:
MODEL: FTB008 MODEL: FTB008A
MODEL: FTB008B MDOEL: FTB016A
FTB008A and FTB008B model is so similar with the strcture, the cable distribution box, black one is waterproof subcutaneous hole, the slots for each drop cable are also very precise.
