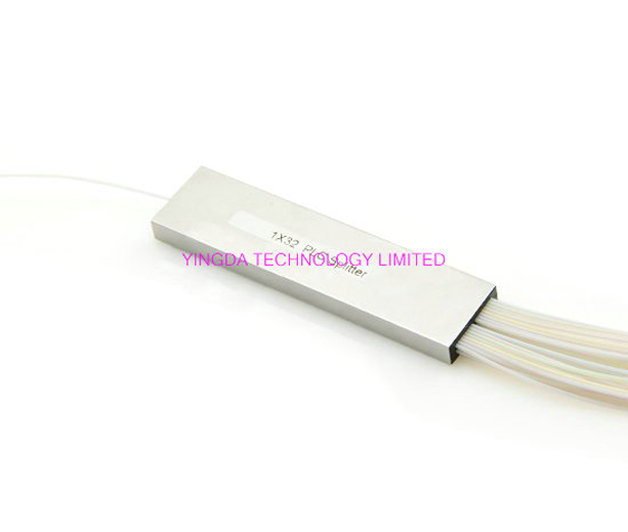

GPON 1:32 Mini Optical Fiber Splitter Planar Lightwave Circuit with SC/UPC Connector Steel Tube
YINGDA provides whole series of 1xN and 2xN splitter products .
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
All products meet GR-1209-CORE and GR-1221-CORE requirements.
Splitter Tube Internal Structures:
Features
Bend Insensitive G657A fiber
Low Insertion Loss and PDL
Telcordia GR-1209 & GR-1221-CORE Compliant
High Polarization Extinction Ratio & Excellent Uniformity
Jacketing Material Rated to -40 to +85 °C Operating Temperature
Compact package,convenient for small Application & High Density Areas
Offer Unique Designs and Configuartions & Support Industry Standard Applications
Applications
- FTTx Deployments(GPON/BPON/EPON)
- CCTV/CATV Links
- Access/Metro Networks
- Long Haul Telecommunications
1×N PLC Splitter Specifications
| Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 |
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 |
| Directivity (dB) | Min | 55 |
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) |
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) |
| Standard Output Color | Blue,Orange,Green,Brown,Grey,White,Red,Black (TIA/EIA 598-B) |
| Max.Optical Power(mw) | 300 |
| Humidity Range(rh) | 5%~85% |
| Operating Temperature(°C) | -40~+85 |
| Storage Temperature(°C) | -40~+85 |
| Connector Options | FC/SC/LC/ST/MU/E2000 |
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount |
| *Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S:Premium Grade/Standard Grade)
*Typical value at +23°C without connectors losses. |
Product details
plc splitter input and output color, connectors,length can be decide by customers: white, blue, green, red..etc
the steel tube can print a label with customer logo, part number or other important ghings.
ribbon fibers inside: 4x8fibers, input: 1 or 2 series ok, package by box, better protection for connectors and fibers.
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber
FO=fan-out
MD=module
MB=metal box | 01X02
01x04
01x08
……
02x16
02x32
02x64 | 0=G652D
1=G657A
C=Customize | 1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube | 1=1m
2=1.5m
C=Customize | 0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize |
