Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel
Model: FTB104 - ST
FTB104 fiber optic termination box is widely used in the end termination of residential buildings and villas to fix and splice with pigtails.
Features
- Cold rolled steel, gray color
- small size,light weight,good appearance
- wall mounted with mechanical protection function
- max fiber capacity 4fibers,4 adapter output
- available for 4pcs FC,SC,ST,LC adapters
- hinge and convenient press-pull button lock design
- Environmental Temperature:-25°C~40°C;
- Self-clip design,easy to operate
- sample is ok
Specifications
| Item | FTB 104 | FTB 108 | FTB 116 |
| Size(H*W*D)mm | 140*105*28 | 200*148*30 | 245*200*48 |
| Cable diameter(mm) | 5~10 |
| Cable ports | 1pc | 2pcs | 3pcs |
| Max capacity of splice | 4 cores | 8 cores | 16 cores |
More pictures

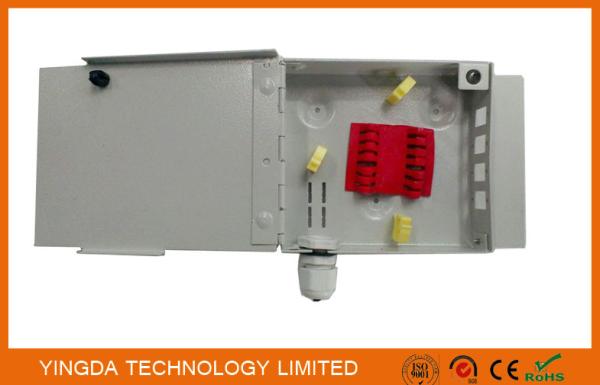

FTB104 terminal box is used indoor, metal material, gray color
and self-clip design with plastic fixtures, no need wrench or keys,easy to open and close
1pc cable gland, if need, can open another. cable diameter:5-10mm
the box is totally closed
the adapter panel can change into SC,ST,FC,LC adapters port
the adapter panel max capacity can be 4fibers, 6fibers, 8fibers 12fibers...16fibers
inside with protection sleeve holders and cable ties to fix the cable and fusion pigtails.
Kit content
| Splice protectin sleeve | 60 mm | 4 pcs |
| Cable ties | 60 mm | 10 pcs |
| Installation nails | Bolt | 3-4 pcs |
Package information
| Carton size | Carton weight | Carton qty |
| 73*32*29 cm | 22 kgs | 50 pcs |
1piece in a box, inside foam and plastic bag to protect the box. then put in shipping carton box for delivery.
If you have other request, or speical design, we can make for you.
