Fiber Pigtail LC SM LSZH 900um White 1.5M, LC Pigtail Single Mode UPC Polish
LC connector: it use to connector SFP transceivers module, it use the easy operation module jack
(RJ) door bolt plug type, router most use this.
LC / UPC Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which
be cut off.Then it connect by splice with other cable core. It is widely used in fiber optic terminal
box, ODF rack , cabinet to connect with fiber optic media converter/transceivers( also use coupler,
patch cord too)
Single mode pigtail color is yellow, wavelength: 310nm and 1550nm, their transmission distance:
10km and 40km each.
Features
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- Fiber transmission active connection
- Low insertion loss, high return loss
- Good changeability and repeatability
- Mostly used inside frame connection, simple, convenient and economical
- Easy to install, small size, large capacity.
1.Technical Data
| NO. | Item | Unit | Single Mode | Multi-Mode |
| 1 | Insertion Loss | dB | ≤0.2 | ≤0.3 | ≤0.3 |
| 2 | Return Loss | dB | ≥50/UPC | ≥45/PC | ≥65/APC | ≥35/PC |
| 3 | Repeatability | dB | 0.1 |
| 4 | Working Times | Times | ≥1000 |
| 5 | Operating Temperature | °C | -40-85 |
| 6 | Optical Cable Diameter | mm | Φ0.9 | Φ2.0 | Φ3.0 |
Application
- Medical instruments
- Industry and Army use
- Fiber Access network
- Telecommunications
- Gigabit Data Network test
- CATV network
- LAN network
Ordering Information:
LC/ PC sM 9/125 SIMPLEX 0.9mm–1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
LC singlemode Pigtail,0.9mm loose tube white color cable:

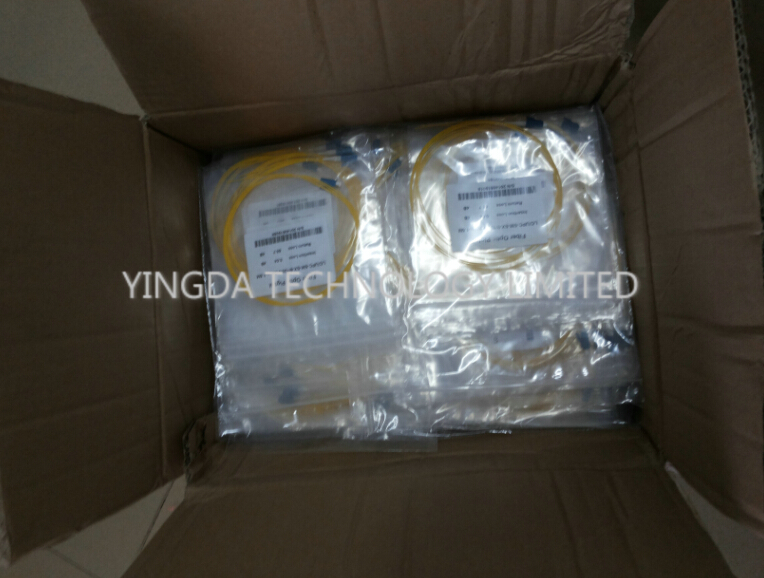

LC pigtail neutral package plastic bag:
