72 Fibers / Core SC FC Rack Mount Distribution Frame Welding Unit Cassette
ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,
high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable
distribution in one set, each fused distribution module can be individually extracted, satisfy the
need of on and off the frame operation.
Large capacity optical distribution frame also are good operation, fused distribution module can
be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic
pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be
directly welded.
Main Technical Parameters
- Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC),
- 1min no breakdown, no arc
- Isolation resistance between high voltage protection place and distribution frame: ≥
- 100MΩ/ 500V (DC)
- By cascading 12 port splice integration module, configurable 12-144 core, 12 core
- per tray
- Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure
- the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
| Environment temperature | -5 ~+45°C |
| Relatively humidity | ≤85% (+30°C) |
| Atmospheric pressure | 70~166 KPa |
| Connector attenuation (Interchangeable and repeat) | ≤0.5dB |
| Insertion loss | ≤ 0.3dB |
| Return loss | APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB |
Structure features
- Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
- The downward and the side door use imported lock
- The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
- Configure reinforced core and cable fixed seat,complete accessories
Performance advantage
- Good sealing performance, flexible configuration, quick installation
- Set three functions: the optical fiber splice, cable storage, cable distribution in one set
- Easy operation, reliable grounding, protect the safety
- The full protection of the jumping fiber, ensure the bending radius ≥ 40mm
Spare parts:
Splice tray, sleeve, buffer tube, mounting screws
Product Tags:
|
|

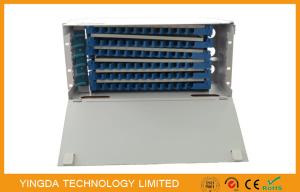

72 Fibers / Core SC FC Rack Mount Fiber Optic Patch Panel Welding Unit Cassette Images
|
