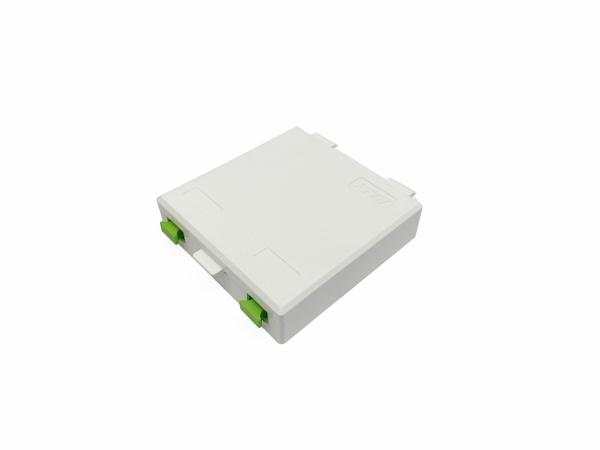

2 Port FTTH Indoor Fiber Optic Termination Box Unibody Wall Outlet 86*86*23mm
The FTB86 customer terminal box socket panel are used in the end termination of residential buildings
and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may
adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly
installed within an office,house or communication room environment.
Advantage:
- Economic design
- Ability to allow cables to enter from both sides of the unit
- Removable cover for easy access
- compact,low profile, wall mounted unit used for small and large business premise
Technical Data:
- Number of input cable ports:1
- Maximum input cable diameter(mm):5mm
- Maximum Capacity: 2 fibres
- Maximum no. of customer feeds: 2 patch cords
- Dimension: 86 x 86 x 23mm
- Material:ABS or PC
- FTTH drop cable or indoor cable can be used.
Features
Used in FTTH indoor application,home or work area
Provide users with optical access or data access
Suitable for 2pcs SC adapters
Store surplus fiber inside,easy for operation
Application
1. FTTH / FTTX system
2. LAN WAN MAN network
3. GPON ODN network
4. Telecommunication
Specifications
| Model | Dimension (H*W*D) | Cable diameter | Cable ports | Max capacity |
| FTB86 | 86*86*23mm | 2.0*3.0mm drop cable or indoor cable 0.9mm,2.0mm,3.0mm | 2ports: 1in,1out | 2core (single fiber) |
Pack information
| Model | Carton size/cm | Carton qty/pc | G.W./kg |
| FTB86 | 56*36*62 | 400 | 23.5 |
More product show:
1. 1 pc package with plastic bag
2. socket panel back side
3. package with strong shipping carton box, good to environment and transportation
