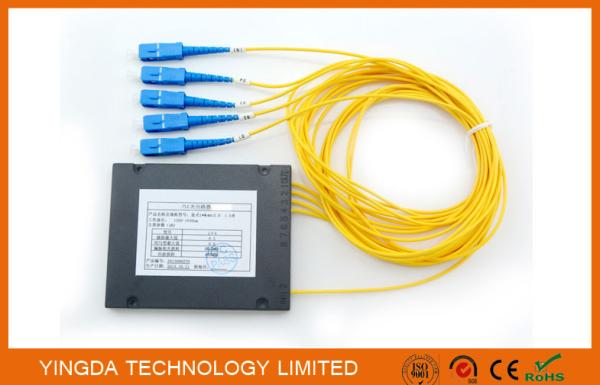

Low PDL PLC Splitter Box Module SC / UPC G657A2 1.5M Blue , Fiber Optic Splitter

Name: Low PDL PLC Splitter Box Module SC UPC G657A2 15M Blue Fiber Optic Splitter
Brand: YINGDA
Price: 1.1 USD

China Low PDL PLC Splitter Box Module SC / UPC G657A2 1.5M Blue , Fiber Optic Splitter factory

Brand Name : YINGDA

Model Number : YD-PLC-MM-104-FC-15

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 50 pcs

Price : 1.1USD-4.58USD

Supply Ability : 10,000 pcs per month

Delivery Time : 5-8days after payment

Packaging Details : 1PC/BOX

connector : SC/UPC

fiber type : single mode G657A2

insertion loss : 7.3/7.0dB

Uniformity (Max.) : 1.5 dB

wavelength : 1260 - 1650 nm

PDL(Max.) : 0.2 dB

Module size : 100×80×10 mm

square tube size : 40×4×4 mm

flat tube size : 60×7×4 mm

Contact Now

1:4 PLC Splitter Box Module SC/UPC G657A2 1.5M Blue, Fiber Optic Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.

YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

Low Insertion Loss
Low PDL
High Isolation
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength
High Reliability and Stability

Applications

FTTH
PON Network
CATV Links
Communication Equipment

Specification
Table1 – 1×N PLC Splitter

Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or as customers' order
Port Configuration	1x4	1x8	1x16	1x32	1x64
Insertion Loss (dB)	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.6	0.8	1.2	1.5	2
Polarization Dependent Loss(dB)	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.5	0.5	0.5
Temperature Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.5	0.5	0.5
Return Loss (dB)	55/50
Operating Temperature	-40~+85
Directivity (dB)	≥ 55
Storage Temperature	-40~+85

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB) (S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18

Notes:

Specified without connectors.
Add an additional 0.2dB loss per connector.
1x64,1x128,2x64 also can be offered.
