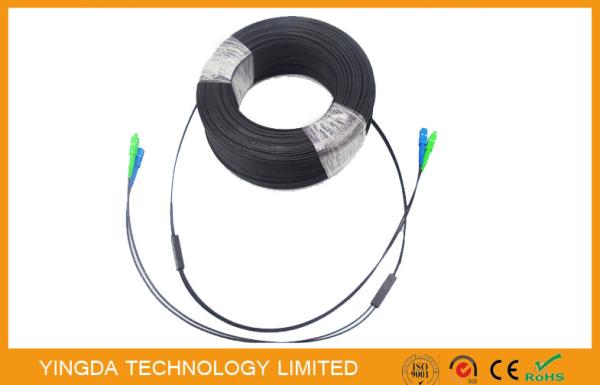

Fiber Optic Patch Cord SC / APC -SC / UPC Duplex FTTH Drop Cable Fanout Kits LSZH FRP
Description
The patch cord which use FTTH drop cable is FTTH drop cable patch cord, the FTTH patch cord
length is generally 3-300meters. The FTTH drop cable patch cord length can be customized,
no need weld, direct installation,save labor cost, now it is widely used by worldwide major operators,
and also gradually been widely used in optical fiber video monitoring installation.
Drop cable can be made into single core, dual core, or 4cores structure, etc. The cross section
is figure-8, reinforcement is located in the center of the two circles, can be made of metal or
non-metal structure,optical fiber in the geometric center.YINGDA technology limited drop cable
use small bending radius G.657 fiber, can laying within 20mm bending radius, suitable for pipeline
or open wiring mode in buildings.
Features
- Special high bending radius optical fiber, provides wider bandwidth, enhance the
- network transmission performance;
- Two parallel FRP or metallic strength member so that the cable has good compression
- performance, protect the fiber;
- Simple structure, light weight, strong practicability;
- The unique groove design, easy to peel, convenient connection, simple installation and
- maintenance;
- Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath, environmental
- protection.
- Can be matched with a plurality of field connector, can be terminated at site.
- Due to its soft and light, it is widely used in access network; so it is also called indoor
- access network butterfly cable, and due to its shape called butterfly optical cable,
- figure 8 cable.
Application
- For indoor wiring, terminal user directly use cable;
- Building introducing (drop) cable;
- FTTH indoor wiring;
Implementation standards
- YD/T1997-2009 access network butterfly optical drop cable
- Delivery length: 2km/ reel
Specification
| Parameter | Single mode | Multimode |
| SPC | UPC | APC | UPC |
| Insertion los s(dB) | <0.3 | <0.5 |
| Return loss (dB) | ≥50 | ≥55 | ≥60 | ≥30 |
| Repeatability | ≤0.2 ,100 times |
| Operating temperature | -40 ~ + 85 °C |
| Storage temperature | -40 ~ + 85 °C |
| Connector type | SC,SC/APC,FC,FC/APC,LC |
Order information
1. Cable type: Figure-8 or self-supporting
2. Strength member: FRP or metal
3. Sheath material: LSZH, PVC
4. Fiber count: 1core, 2core, 4core...
5. Fiber type:G652D, G657A1,G657A2
6. Cable color: white, black, yellow
